Blood Filtration and Administration Sets for Small and Large Animals

Ideal for preparation and delivery of aliquots of whole blood, red cells and platelets, cellular components and fresh-frozen plasma for transfusion and autotransfusion.

HIGH FLOW BLOOD ADMINISTRATION - Item #BF200-2

• Ideal in large animal applications to administer and filter blood from a bag.
• Large bore tubing for HIGH FLOW blood administration.
• Set includes spike, drip chamber, tubing, roller clamp, 200 micron blood filter, needle-free injection port and SPINNER luer lock.
• Total length 203cm (80in).
• Priming volume is 36mL.
• Filtration Area: 16 square centimeters.
• Volume limit depends on a variety of factors such as blood density and transfusion pressure.
• Flow rates can be increased using pressurization (Item #AF48).
• No Catheter:                         710mL/min
• 14Ga x 5.25in  Catheter:  180mL/min
• 12Ga x 5.25in  Catheter:  375mL/min
• 10Ga x 5.25in  Catheter:  475mL/min

SYRINGE ADMINISTRATION - Item #BF200-3

• Ideal for use to filter and administer blood from a syringe.
• Large Bore Tubing.
• Set includes female luer, tubing, 200 micron blood filter, pinch clamp and SPINNER luer lock.  Total length 43cm (17in).
• Priming Volume is 4mL.
• Filtration Area: 16 square centimeters.
• Volume limit depends on a variety of factors such as blood density and transfusion pressure.

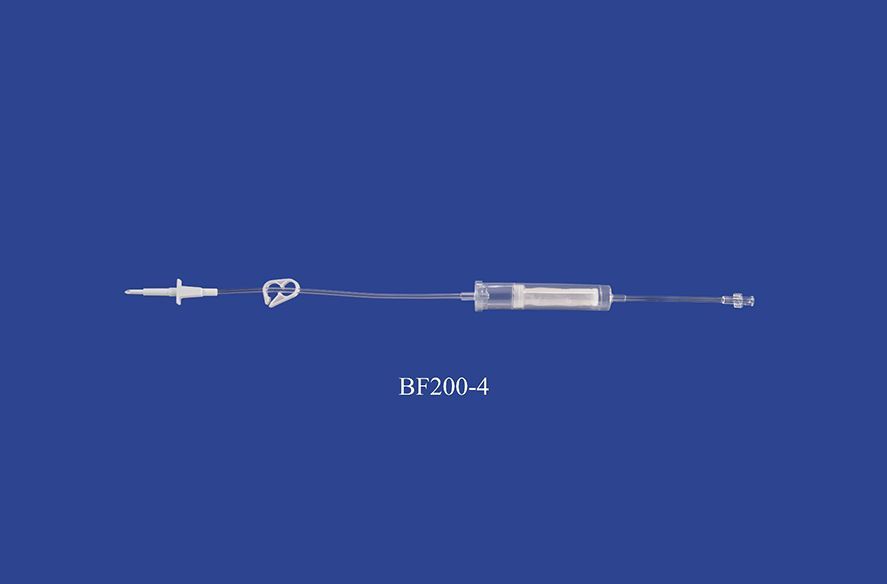

BAG ADMINISTRATION - Item #BF200-4

• • Large bore tubing.
  • Connect to MILA Automatic 3-way set to make a completely closed delivery system. Refer to Pigott study on using a closed system for collection and administration of autotransfusion in a dog with traumatic hemothorax.
  • Set includes non-vented spike, tubing, pinch clamp, 200 micron blood filter and female luer lock.
  • Total length 47cm (18in).
  • Priming volume is 3mL.
  • Filtration Area: 16 square centimeters.
  • Volume limit depends on a variety of factors such as blood density and transfusion pressure.
