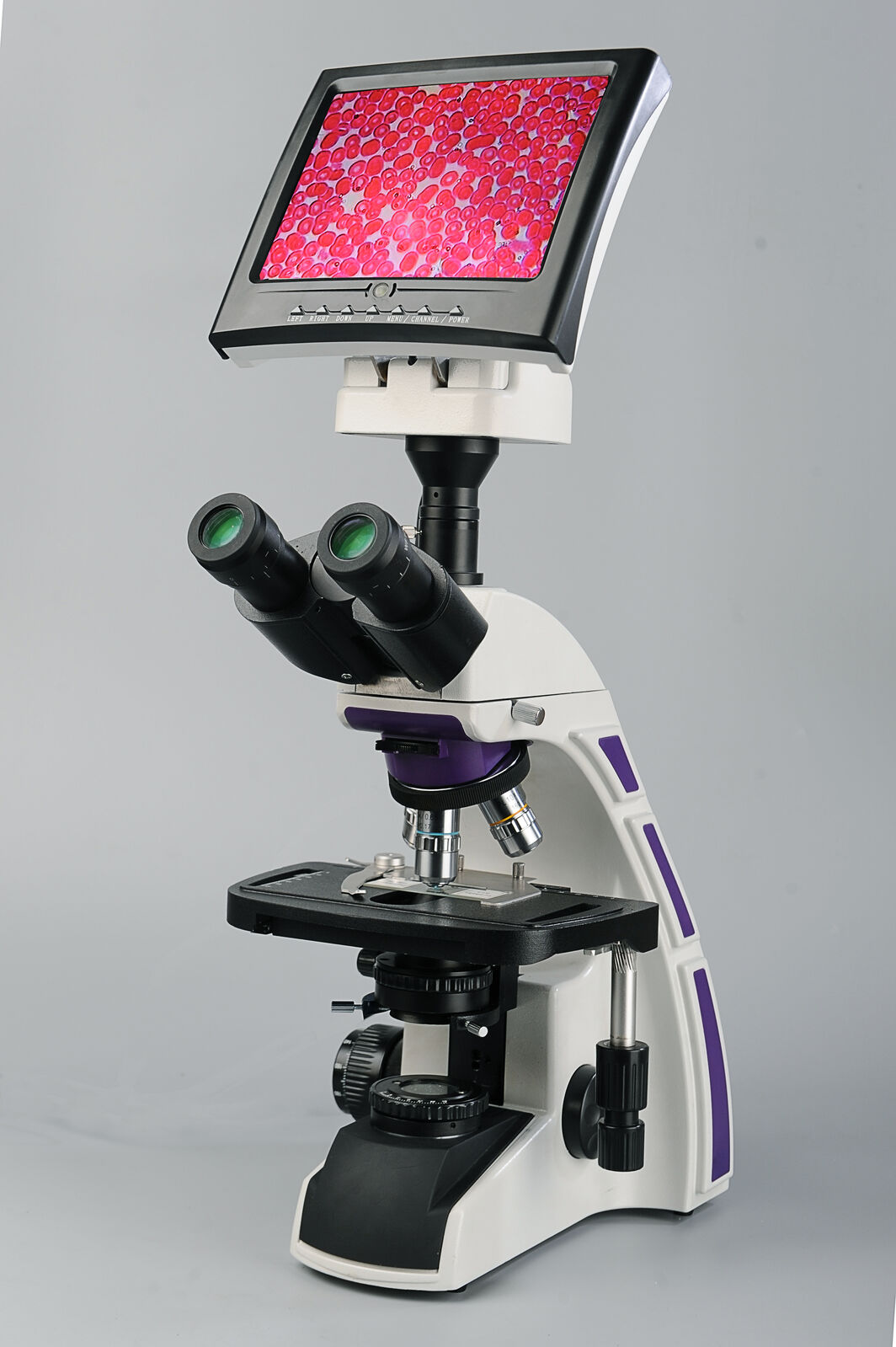

VetTech 3W LED Microscope

  • Finity Optical System
  • Eyepiece - PL10X/23mm high eyepiont eyepiece, diopter adjustment ±5, tubeΦ30mm
  • Objective -  45mm DIN achromatic objective 4X,10X,40X(S),100X(S,Oil)
  • Viewing Head - Articulated Free trinocular head, 30°inclined, interpupillary distance 50-75mm
  • Stage - 220X148mm X-axis low hand position double mechanical stage(steel wire transmission),76X50mm,presion 0.1mm,damped double slide clamp
  • Abbe condenser set
  • Focusing System - Coaxial coarse and fine focus knobs, precision 0.002mm
  • Illumination  - 3W LED lamp with Kohler illumination system
  • Net Weight 7kg
  • Supplied in Wooden Case

Optional LCD Screen

FEATURES:
LCD display with special connector can be used for biological microsco
pe and stereo microscope, after installing, can observe the slides and
objects easily, especially for industrial parts’ checking, can reduce the
visual fatigue and improve checking efficiency.
TECHNICAL SPECIFICATION:
CCD Technical Data:
Device Dimension: 1/3”
Horizontal Resolution: 700TVline
Pixels: 976(H)X582(V)
LCD Technical Data:
Display Dimension: 800X600
Color: 16,777,216colors
Highest Mode: 1024X768@75Hz
Color System: PAL/NTSC4.43/NTSC3.58/SECAM
Can be connected with the computer by USB cable, can be connected
with the TVset, Monitor by cables.
Compatible with WINXP/WIN7/WIN8 software.



(VT5599-LED)

SKU VT5599-LED
Unit Of Measure ea
